Draining Oil For Final Drive

Unscrew oil filler screw for final drive -1-  .

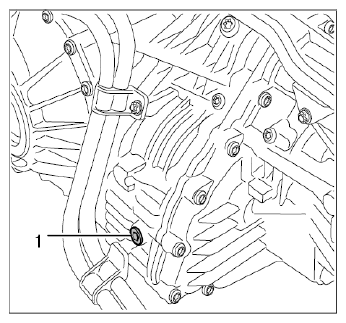

Fig 1: Identifying Final Drive Oil Filler Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

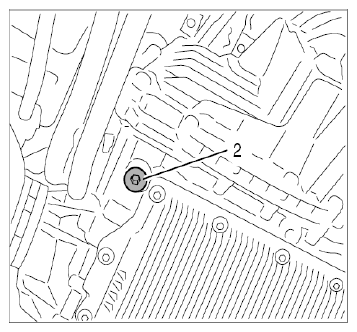

Fig 2: Identifying Final Drive Oil Drain Plug

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew oil drain plug -2-  and drain oil for final drive.

→ Let the fluid cool down.

→ Wear personal protective gear.

Topping up oil for final drive

→ Do not start engine.

→ Do not tow the vehicle.

Screw in and tighten new oil drain plug for final drive -2-  .

→ Tightening torque: 35 Nm (26 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

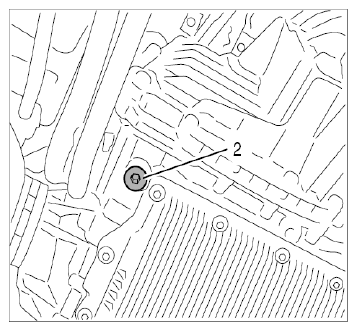

Fig 3: Identifying Final Drive Oil Drain Plug

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Use the ATF Filling Device For Filling Transmission Nr. 161  to top up with oil for final drive until oil emerges at the oil filler opening.

→ Tightening torque: 35 Nm (26 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

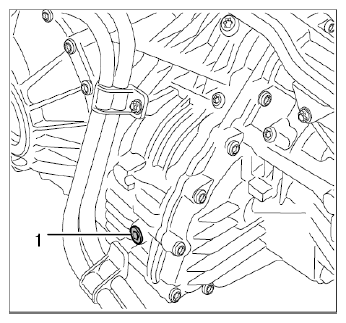

Fig 4: Identifying Final Drive Oil Filler Screw
