Topping Up Oil For Final Drive

→ Do not start the engine.

→ Do not tow the vehicle.

1. Replace sealing ring for drain plug and clean and tighten the drain plug. → Tightening torque: 25 Nm (19 ft. lb.)
2. Fill oil for final drive with ATF Filling Device For Filling Transmission Nr. 161  until oil escapes at the oil filler opening.

   Replace sealing ring for filler plug, clean filler plug, and tighten. → Tightening torque: 22 Nm (16 ft. lb.)

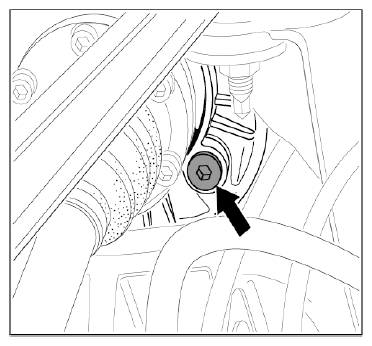

   Fig 1: Locating Final Drive Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit underbody panelling. → 519419 REMOVING AND INSTALLING REAR TRIM - installing
