Changing Oil For Final Drive: Notes

Draining oil for final drive

1. Unscrew oil filler plug.

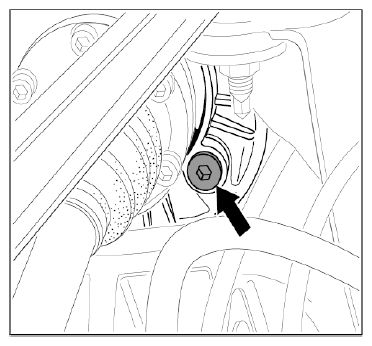

   Fig 1: Locating Final Drive Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Risk of scalding from hot oil

   → Let the oil cool down

   → Wear personal protective gear (goggles, gloves)

   NOTE: Fill level too low

   • Risk of damage to components.

   → Do not start the engine.

   → Do not tow the vehicle.

2. Unscrew oil drain plug and drain oil.

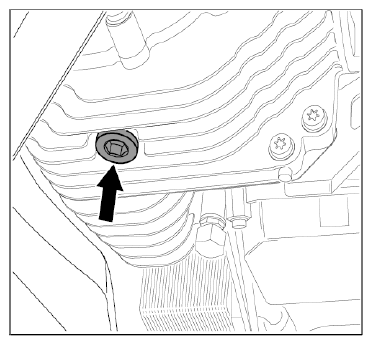

   Fig 2: Locating Final Drive Oil Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
