Checking And Topping Up Differential Oil For Front Final Drive

Information

Only use differential oil  approved by Porsche .

→ Let the fluid cool down.

→ Wear personal protective gear.

→ Let the fluid cool down.

→ Wear personal protective gear.

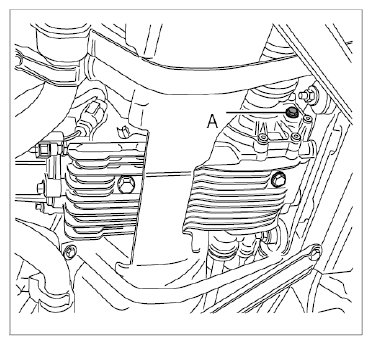

1. Unscrew oil filler screw -A-  .

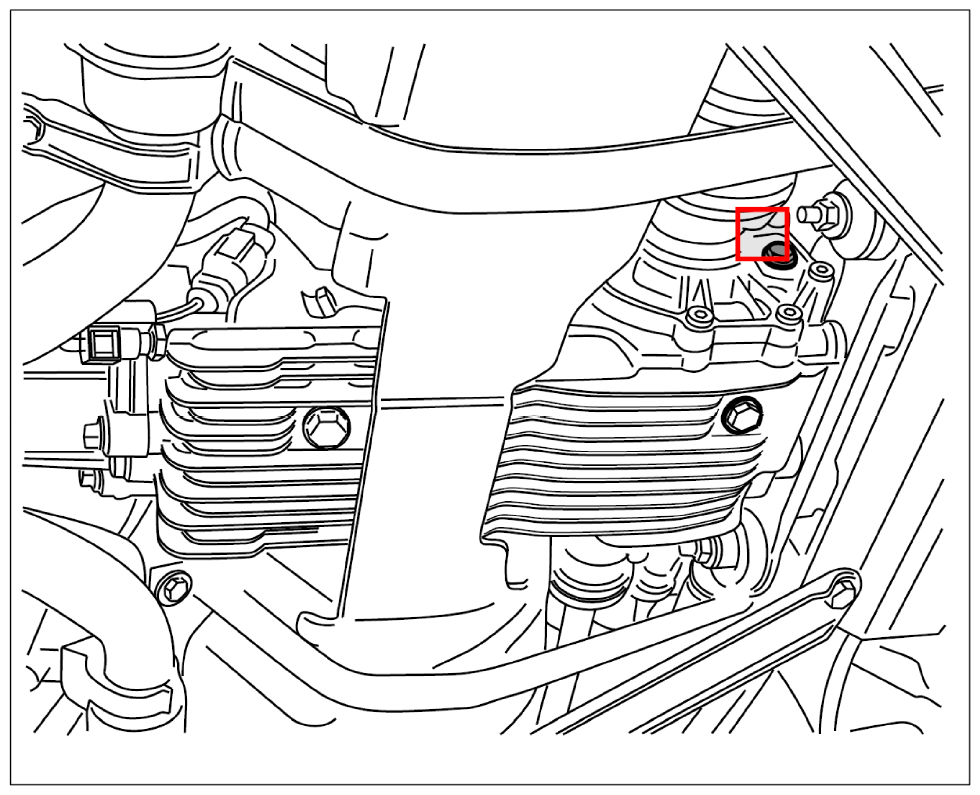

   Fig 1: Identifying Differential Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   The oil level is correct if differential oil emerges. Continue with Step  3.

   If no differential oil emerges, the oil level in the final drive is too low. Continue with Step 2.

2. Fill in differential oil up to the bottom edge of the filler opening.
3. Clean oil filler screw and screw in with a new sealing ring.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Oil filler screw for differential oil for front final drive		Tightening torque	28 Nm (21 ft. lb.)
   Oil filler screw for differential oil for front final drive
