Checking And Topping Up Oil For Final Drive

Unscrew oil filler plug.

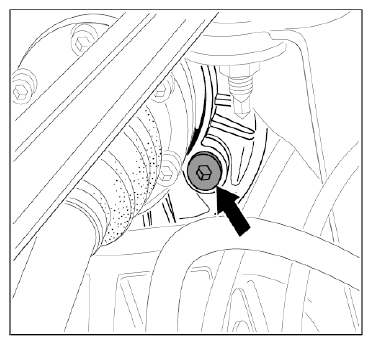

Fig 1: Locating Final Drive Oil Filler Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Risk of scalding from hot oil

→ Let the oil cool down

→ Wear personal protective gear (goggles, gloves)

The oil level is correct if oil emerges. Continue with Step 3.

If no oil escapes, the oil level in final drive is too low. Continue with position 2.
Fill oil for final drive with ATF Filling Device For Filling Transmission Nr. 161 until oil escapes at the oil filler opening.
Replace sealing ring for filler plug, clean filler plug, and tighten. → Tightening torque: 22 Nm (16 ft. lb.)
