Installing Front Final Drive

Carefully guide the front final drive into position from below. Avoid damaging the coolant pipes when doing so.

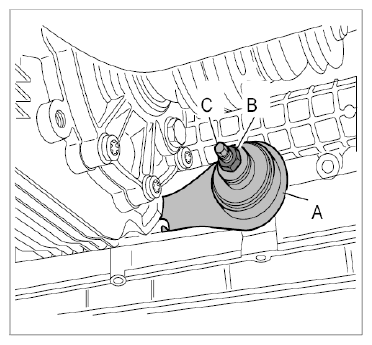

1. 2.1. Screw studs -C-  through the transmission support -A-  and into the front-axle cross member.

   → Tightening torque: 20 Nm (15 ft. lb.)

   Fig 1: Identifying Final Drive Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Screw nuts -B-  onto studs and tighten them.

   → Tightening torque: 65 Nm (48 ft. lb.)

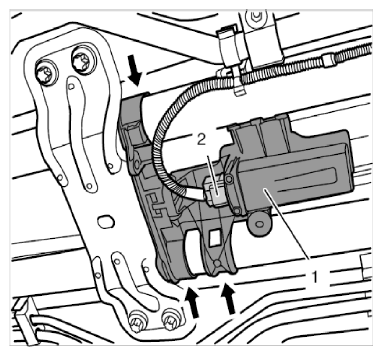

1. 3.1. Engage pipe holder on lines.

   Press on grab handles -arrows-  on the coolant pipes and connect cable plug -2-  . Slide the pipe holder -1-  back until it engages on the support for final drive.

   Fig 2: Locating Pipe Holder On Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

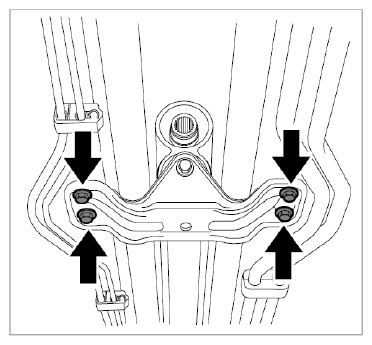

2. 3.2. Secure support for final drive.

   Screw in and tighten screws -arrows-  .

   → Tightening torque: 65 Nm (48 ft. lb.)

   Fig 3: Locating Final Drive Support Securing Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

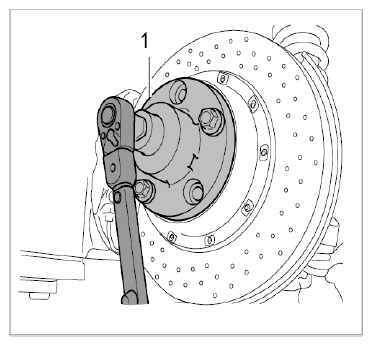

1. 5.1. Counter using special tool Adapter Plate 9510/1 -1-  ).
   Fig 4: Identifying Adapter Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

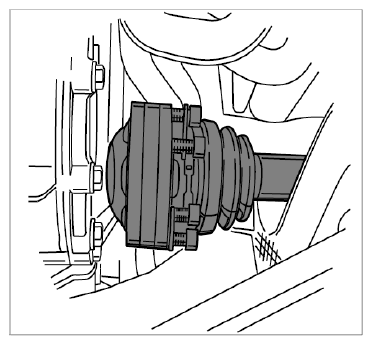

2. 5.2. Screw in and tighten the six bolts between the drive shaft and transmission flange.

   → Tightening torque: 39 Nm (29 ft. lb.)

   Fig 5: Identifying Drive Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

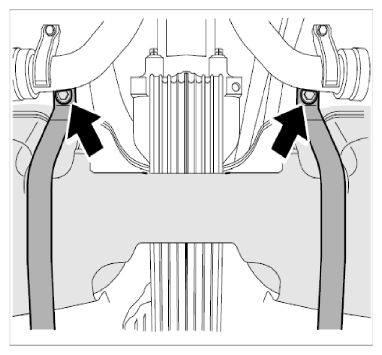

Fig 6: Locating Front Tank Covering Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit tank covering and secure with retaining straps by screwing in and tightening screws -arrows-  .

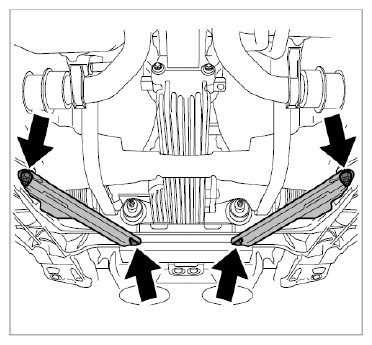

Fig 7: Locating Front Diagonal Braces Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit diagonal braces and make sure the arrows on the diagonal braces are pointing forward. Then screw in and tighten screws -arrows-  .

→ Tightening torque: 100 Nm (74 ft. lb.)
