Installing Sealing Ring For Cardan Flange

Install sealing ring for cardan flange.
1. 1.1. Fill the space between the dust and sealing lips -arrow- on the new sealing ring with grease, e.g. Liqui-Moly.

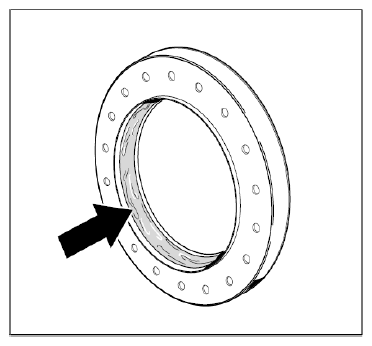

  Fig 1: Locating Grease On Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Tap sealing ring into the transmission as far as the mounting face using Pressure Piece 9790 .

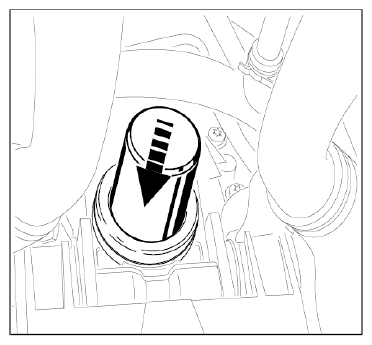

  Fig 2: Tapping In Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
