Removing Cardan Flange - Automatic Transmission

Set selector lever to P and firmly apply the handbrake.
Loosen and unscrew collar nut using Socket Wrench 9669 .

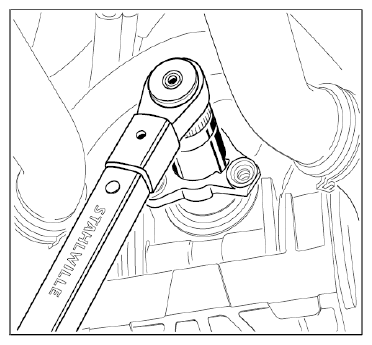

Fig 1: Removing Collar Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off cardan flange using Three-Arm Puller: Span Width 100 mm, Span Depth 100 mm Nr. 112-1 .

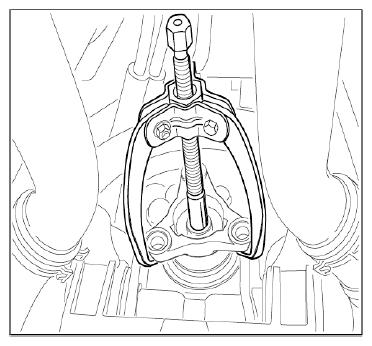

Fig 2: Pulling Off Cardan Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
