Installing Cardan Flange - Manual Transmission

  1. Halfshaft flange
  2. Collar nut
  1. Screw locking lacquer (Loctite 243 or Omnifit 50 M)

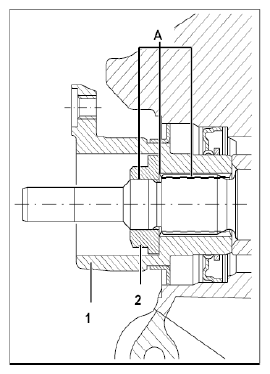

    Fig 1: Identifying Halfshaft Flange, Collar Nut And Screw Locking Lacquer Location
    G09825369Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Degrease the pinion shaft journal (splines and thread), halfshaft flange splines and thread of the collar nut with cleaning agent (e.g. Loctite quick cleaner).
  2. Coat halfshaft flange splines with screw locking lacquer (e.g. Loctite 243 or Omnifit 50 M) and fit the flange.
  3. Coat sealing surface and thread of collar nut with screw locking lacquer (e.g. Loctite 243 or Omnifit 50 M) and fit the collar nut.
  4. Tighten the collar nut.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Collar nut for cardan flange   Tightening torque 120 Nm (89 ft. lb.)
