Installing Cardan Flange - Automatic Transmission

  1. Replace O-ring for cardan flange.
  2. Screw on new collar nut and tighten using Socket Wrench 9669  .
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Collar nut for cardan flange   Tightening torque 160 Nm (118 ft. lb.)
  3. Lock nut by pressing in the collar.

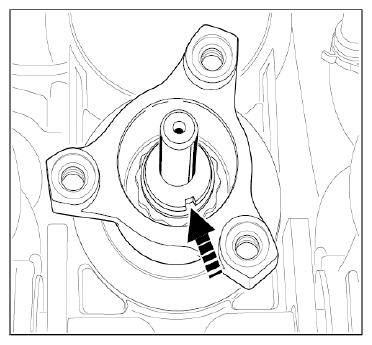

    Fig 1: Pressing Collar In Nut
    G09825368Courtesy of PORSCHE CARS NORTH AMERICA, INC.
