Installing Front Halfshaft Flange

Replace circlip for the halfshaft flange. To do this, clamp the flange in the vice with a hexagon-head bolt -B- and press the circlip out with the new circlip -A- .

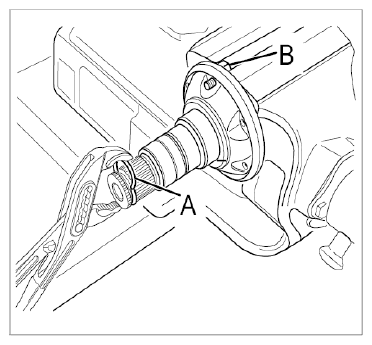

Fig 1: Replacing Halfshaft Flange Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grease circlip for easier fitting.
Drive halfshaft flange into transmission using a rubber hammer.

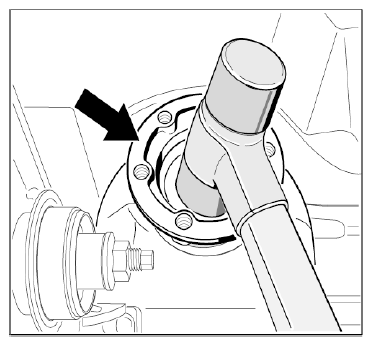

Fig 2: Tapping In Halfshaft Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
