Removing Sealing Ring For Front Halfshaft Flange

  1. Lever off halfshaft flange.

    Lever out halfshaft flange with mounting lever.

    Fig 1: Removing Halfshaft Flange
    G09825342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully lever out sealing ring -1-  with a mounting lever -3-  .

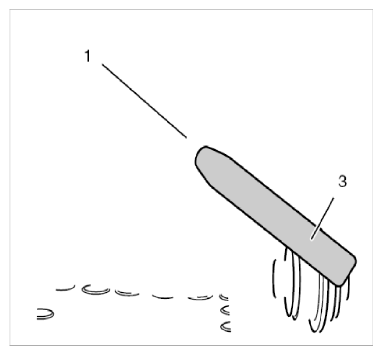

    Fig 2: Levering Out Sealing Ring
    G09825343Courtesy of PORSCHE CARS NORTH AMERICA, INC.
