Removing Cover For Final Drive

Lever Off Halfshaft Flange With A Mounting Lever And Pull It Out.

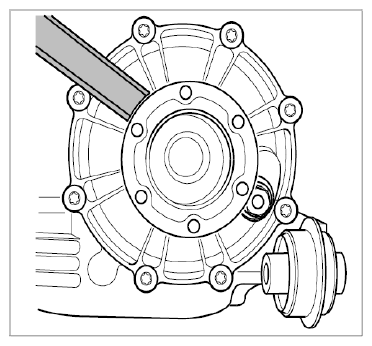

Fig 1: Removing Halfshaft Flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Unscrew Screws -2-  Between Cover For Final Drive -1-  And Final Drive.

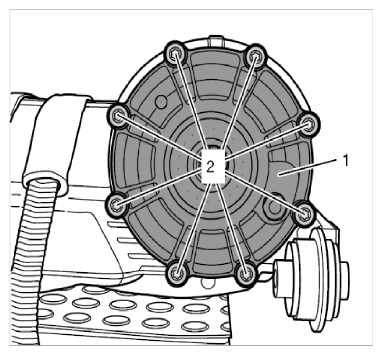

   Fig 2: Identifying Final Drive Cover Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Loosen Cover For Final Drive -1-  By Tapping It With A Rubber Hammer If Necessary, And Remove It.
