Installing Cover For Final Drive

Sealing ring must always be replaced.
1. 1.1. Fit sealing ring on cover without twisting it.
2. 1.2. Coat sealing ring with Vaseline.
Install cover for final drive.
1. 2.1. Fit cover for final drive on the transmission and position it using a centering pin 9321 .
2. 2.2. Screw in screws between the cover and transmission.
  → Tightening torque: 25 Nm (19 ft. lb.)

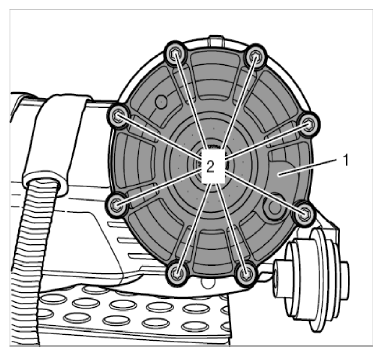

  Fig 1: Identifying Final Drive Cover Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install halfshaft flange.

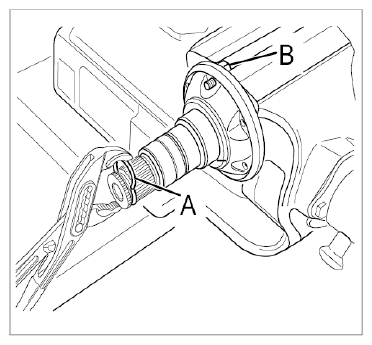

Fig 2: Replacing Halfshaft Flange Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Replace circlip -A- for the halfshaft flange. To do this, clamp the flange in the vice with a hexagon-head bolt -B- and press the circlip out with the new circlip -A- .
2. 3.2. Grease circlip -A- for easier fitting.
3. 3.3. Drive halfshaft flange -arrow- into transmission using a rubber hammer.

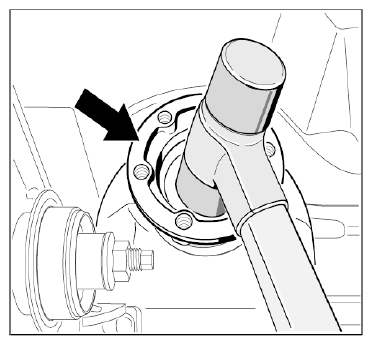

  Fig 3: Tapping In Halfshaft Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
