WM 394037 Disassembling And Assembling Differential With Differential Lock (Gt2, Gt2 RS, Gt3 & Gt3 RS): Information

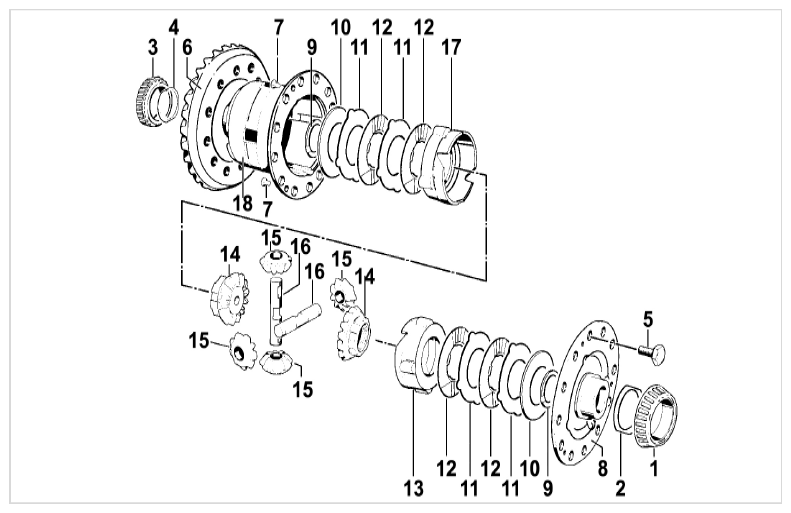

Fig 1: Identifying Differential Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Taper roller bearing outer ring (large)
2. Adjusting shim
3. Taper roller bearing (small)
4. Adjusting shim
5. Screw
6. Crown wheel
7. Screw, countersunk-head
8. Lids
9. Thrust washer
10. Cup spring
11. Disc with external splines
12. Inner disc
13. Thrust ring (outer)
14. Shaft bevel gear with threaded disc
15. Bevel pinion
16. Axle
17. Thrust ring (inner)
18. Housing
