Dismantling Differential And Differential Lock

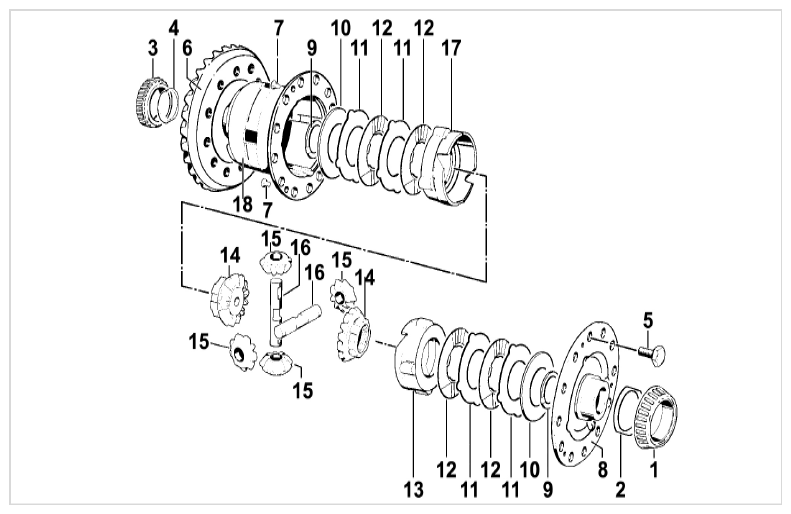

Fig 1: Identifying Differential Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp differential lock.
Clamp differential lock using Clamping Jaws 9646 into the vice.

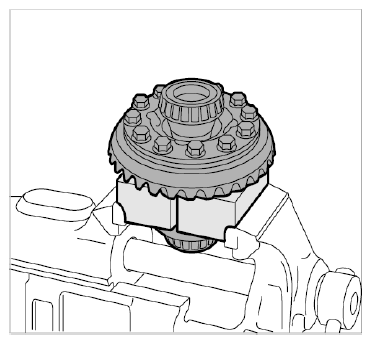

Fig 2: Clamping Differential
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark installation position of cover.
Mark installation position of cover -8- relative to the housing for reinstallation.
Remove bearing outer race.
1. 3.1. Remove left bearing outer race (large).
  Heat cover for differential up to approx. → Temperature: 120°C (248 °F) and push out left bearing outer race (large).
2. 3.2. Remove right bearing outer race (small).
  Drive out with aluminum or copper mandrel, changing sides.
Detach taper roller bearing.
1. 4.1. Detach taper roller bearing (large) -1- using suitable extractor, Pressure Pieces 9656 and Pressure Piece P254B .

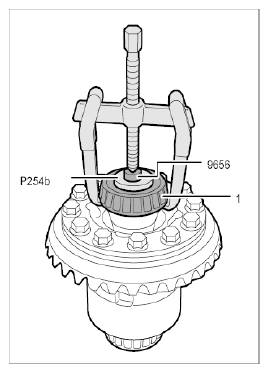

  Fig 3: Removing Taper Roller Bearing (Large) Crown Wheel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Detach taper roller bearing (small) -3- using suitable extractor, Pressure Pieces 9656 and Pressure Piece P254B .

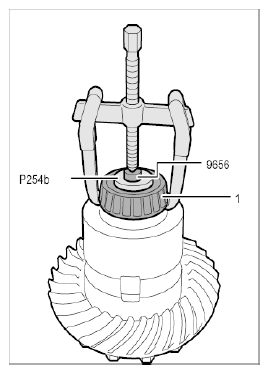

  Fig 4: Pressing Off Taper Roller Bearing (Small)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crown Wheel.

Fig 5: Removing Crown Wheel From Differential Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Undo screws -5- for crown wheel -2- .
2. 5.2. Press off crown wheel -2- from differential housing -1- .
Remove differential cover.
Undo countersunk-head screws -7- , remove cover -8- and remove all internal parts. Mark thrust rings -13, 17- for refitting.
