Installing Differential With Differential Lock

If the taper roller bearings with outer bearing shells need to be replaced, measure the differential (total disc thickness S1 and S2) and if necessary adjust. See:

→ 390815 ADJUSTING DRIVE SET - SECTION ON "ADJUSTING"

Replacing taper roller bearings, see:

→ 394037 DISASSEMBLING AND ASSEMBLING DIFFERENTIAL - SECTION ON "INSTALLING"

1. 1.1. Install left outer bearing ring (large).

   Heat cover to approx. → temperature: 120°C  . After heat exchange, insert left outer bearing ring (large) and drive in using the mandrel from special tool pull-in tool and extractor P254  and a suitable pressure piece Pressure Pieces (4) 9247  .

2. 1.2. Install right outer bearing ring (small).

   Drive in outer bearing ring with Pressure Piece 3062  and Drive-In Mandrel VW 295  as far as it will go.

Oil new O-Ring slightly.

Tighten screws for differential cover -1-  .

→ Tightening torque: 25 Nm (19 ft. lb.)

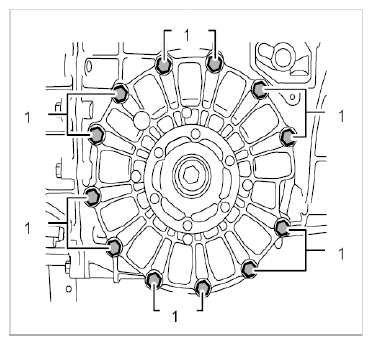

Fig 1: Identifying Differential Cover Mounting Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ WM 392219 REMOVING AND INSTALLING SEALING RING FOR RIGHT HALFSHAFT FLANGE (TURBO COUPE, TURBO S COUPE, TURBO CABRIO, TURBO S CABRIO, GT2, GT3, GT2 RS & GT3 RS)  - section on "Installing"

→ WM 392219 REMOVING AND INSTALLING SEALING RING FOR LEFT HALFSHAFT FLANGE (TURBO COUPE, TURBO CABRIO, GT2, GT3, & GT3 RS)  - section on "Installing"

→ 392519 REMOVING AND INSTALLING RIGHT HALFSHAFT FLANGE  - section on "Installing"

→ 392519 REMOVING AND INSTALLING LEFT HALFSHAFT FLANGE  - section on "Installing"

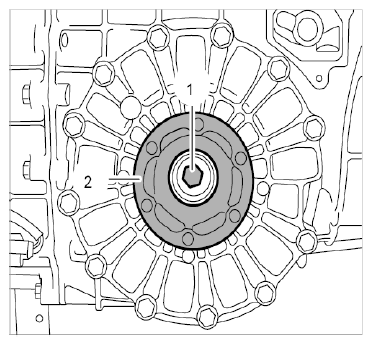

Fig 2: Identifying Left Halfshaft Flange Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
