WM 394019 Removing And Installing Differential With Differential Lock (Gt2, Gt2 RS, Gt3 & Gt3 RS): Information

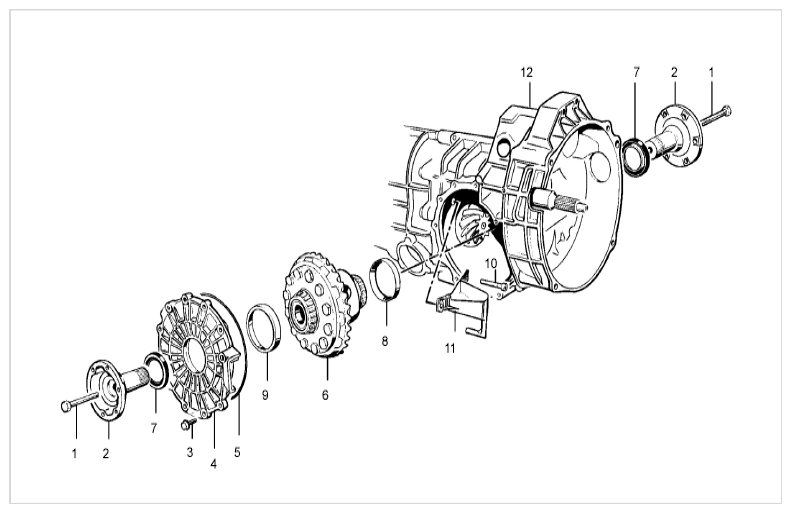

Fig 1: Exploded View Of Differential

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw
2. Halfshaft flange
3. Screw
4. Lids
5. O-ring
6. Differential lock
7. Sealing ring
8. Outer bearing ring
9. Outer bearing ring
10. Cheese head bolt
11. Oil collecting pan
12. Transmission housing
