Installing Left Halfshaft Flange

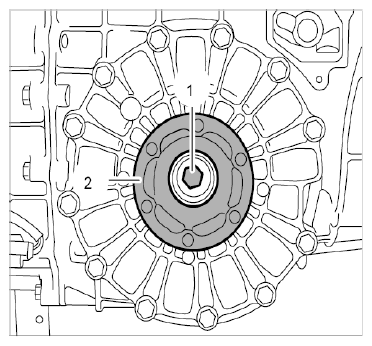

Fig 1: Identifying Halfshaft Flange Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always replace screw for the halfshaft flange.

Insert halfshaft flange -2-  and screw in and tighten screw -1-  .

Screw for halfshaft flange → Tightening torque: 44 Nm (33 ft. lb.)
