Installing Front Halfshaft Flange

Install halfshaft flange.

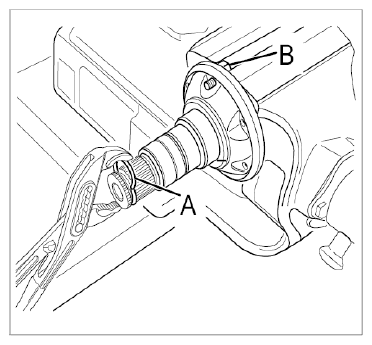

Fig 1: Replacing Halfshaft Flange Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Replace circlip -A- for the halfshaft flange. To do this, clamp the flange in the vice with a hexagon-head bolt -B- and press the circlip out with the new circlip -A- .
2. 1.2. Grease circlip -A- for easier fitting.
3. 1.3. Tap halfshaft flange -arrow- into the transmission using a rubber hammer.

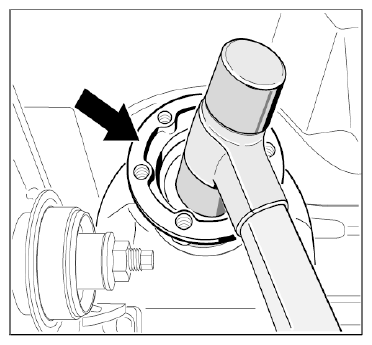

  Fig 2: Installing Halfshaft Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
