Removing Sealing Ring For Short Halfshaft Flange

  1. Remove sealing ring from transmission using Striker VW 771/1  and Extraction Tool VW 771/37  .

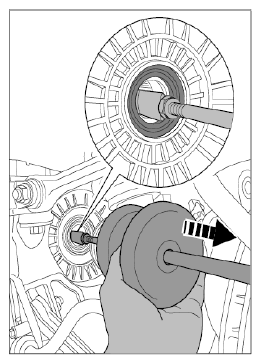

    Fig 1: Removing Transmission Sealing Ring
    G09825281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
