Installing Sealing Ring For Halfshaft Flange

Information

The sealing ring must fit in the transmission housing at the same depth all round.

1. Thinly coat sealing lip and outer circumference of sealing ring with Vaseline and insert sealing ring as far as it will go using Pressure Piece 9252  .

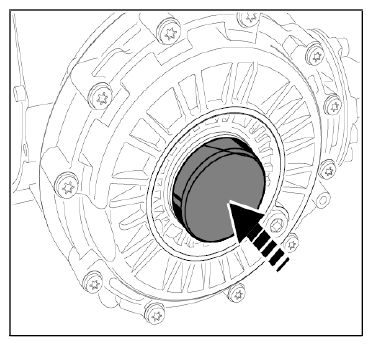

   Fig 1: Installing Transmission Sealing Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
