Removing Sealing Ring For Left Halfshaft Flange

Information

The halfshaft flange screw is coated with securing liquid. Always loosen and unscrew the screw only by hand. Loosening the screw using a commercially available electric screwdriver can cause the shaft bevel gear and threaded disc to move inwards out of the splines, rendering the screw ineffective. The differential lock would then have to be disassembled. Avoid this at all costs!

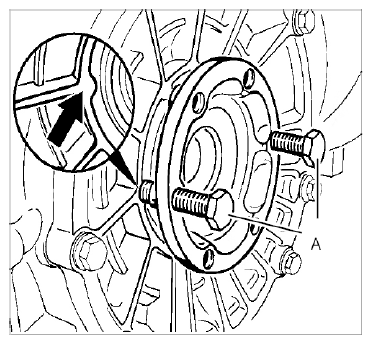

Fig 1: Locating Drive Shaft Flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen screw -1-  and remove it.

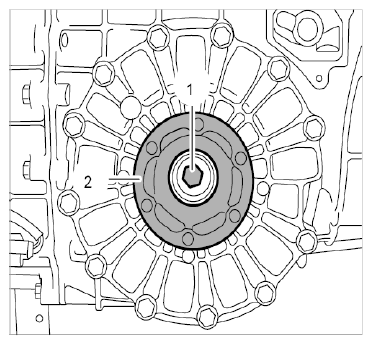

   Fig 2: Identifying Halfshaft Flange With Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove halfshaft flange -2-  .
3. Lever the sealing ring out of the transmission.

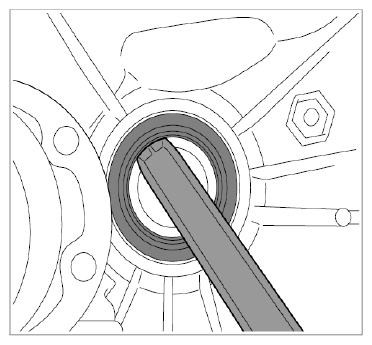

   Fig 3: Levering Out Sealing Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
