Installing Sealing Ring For Left Halfshaft Flange

1. 1.1. Thinly coat the outer circumference and sealing lip of the sealing ring with Vaseline and place sealing ring on the pressure piece 9252  .

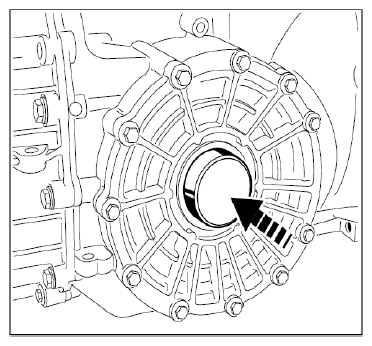

   Fig 1: Tapping In Sealing Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Tap sealing ring in as far as the mounting face.

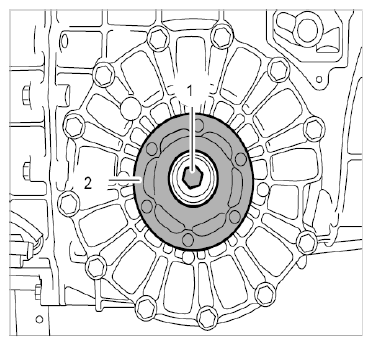

Fig 2: Identifying Halfshaft Flange With Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always replace screw for the halfshaft flange.

Insert halfshaft flange -2-  and screw in and tighten screw -1-  .

→ Tightening torque: 44 Nm (33 ft. lb.)
