Removing Cardan Shaft

Information

• Observe maximum joint angle of 20° during removal and fitting.
• The cardan joint must not be loaded at maximum deflection (lock).

1. Remove transmission bracket.
   1. 1.1. Support transmission -1-  with a transmission jack -2-  .

      Make sure to use the entire surface of the ATF pan as the contact surface so as to avoid damaging the ATF pan.

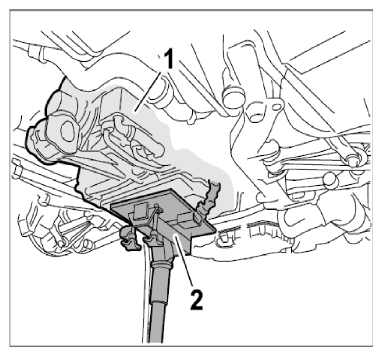

      Fig 1: Supporting Transmission Using Transmission Jack

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Remove transmission bracket.

      Loosen and unscrew screws -arrows-  and remove transmission bracket.

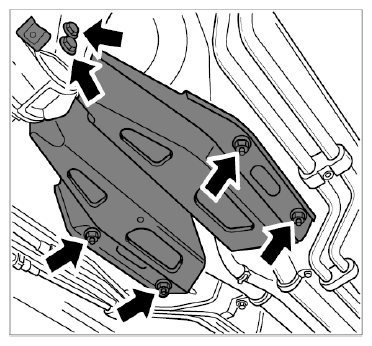

      Fig 2: Locating Transmission Bracket Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Secure transmission to the gear support with the transmission mount screws -arrows-  .

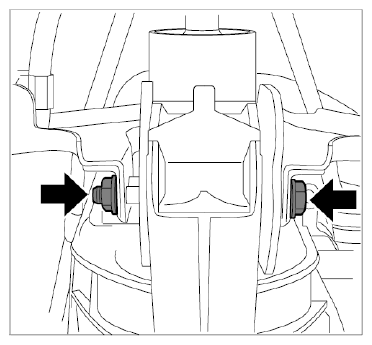

      Fig 3: Locating Transmission Mounting Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 1.4. Remove transmission jack.
2. Remove the cardan shaft.
   1. 2.1. Remove cardan shaft from transmission by unscrewing the screws -arrows-  . Move gear selector to "P" or apply the handbrake to prevent the transmission from turning.

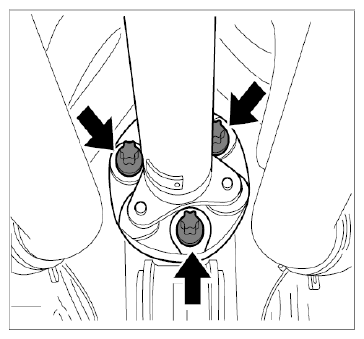

      Fig 4: Locating Cardan Shaft Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Press cardan shaft -1-  off using a mounting lever -2-  if necessary to remove it from the cardan flange -3-  .

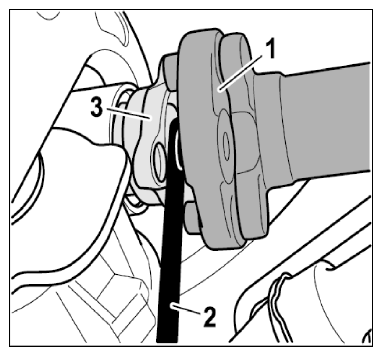

      Fig 5: Pressing Cardan Shaft Off Transmission Flange

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 2.3. Pull cardan shaft out of the splines of the central shaft and remove it.
   4. 2.4. Pull bellows -arrow-  off the central shaft.

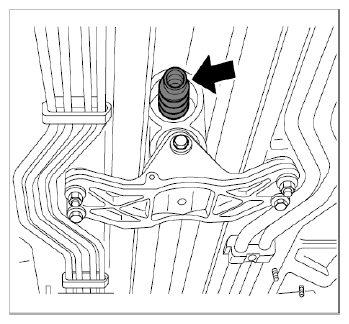

      Fig 6: Locating Central Shaft Bellows

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
