Installing Cardan Shaft

Information

Always replace bellows.

Install cardan shaft.

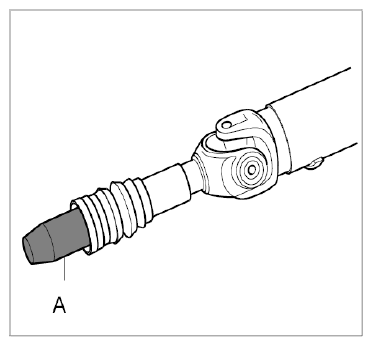

1. 1.1. Assembly Sleeve 9255 -A- must be pushed over the splines. Then, lightly lubricate sleeve with Vaseline and slide on bellows as far as it will go.

  Fig 1: Fitting Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

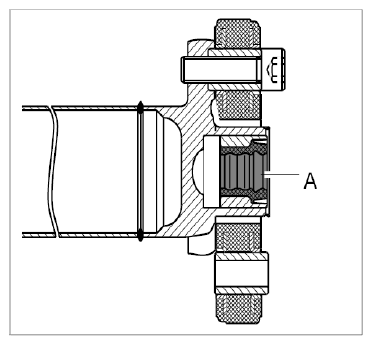

2. 1.2. Grease bush -A- with approx. 3 g of Olysta Longtime 3EP.

  Fig 2: Identifying Bush
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Grease splines of the cardan shaft with Olista Longtime 3 EP.
4. 1.4. Slide cardan shaft into the splines of the central shaft.

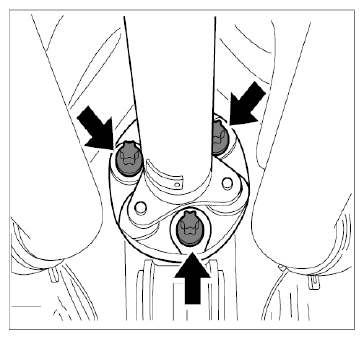

5. 1.5. Fit cardan shaft at the transmission side by screwing in and tightening the screws -arrows- .
  → Tightening torque: 45 Nm (33 ft. lb.)

  Fig 3: Locating Cardan Shaft Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

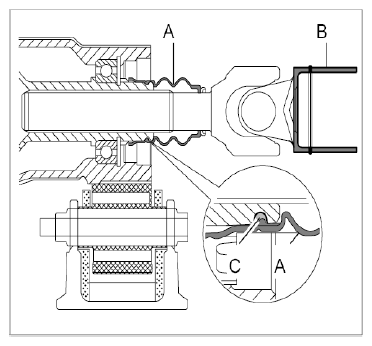

6. 1.6. Push bellows -A- forward until it engages in the central shaft groove -C- .
  1. Bellows
  2. Cardan shaft
  3. Central shaft groove

    Fig 4: Cross-Section View For Bellows In Central Shaft
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. 1.7. Check that the bellows -A- is seated properly by pulling on it.
Install transmission bracket.

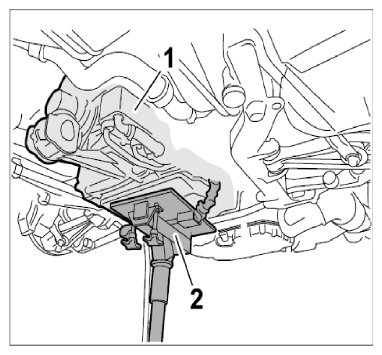

1. 2.1. Support transmission -1- in installation position with a transmission jack -2- .
  Make sure to use the entire surface of the ATF pan as the contact surface so as to avoid damaging the ATF pan.

  Fig 5: Supporting Transmission With Transmission Jack
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

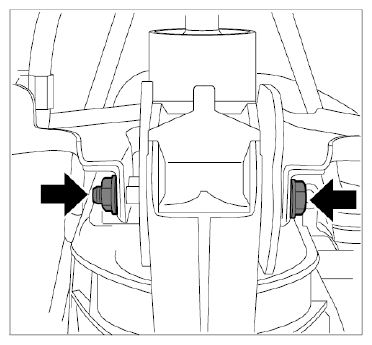

2. 2.2. Unscrew screws -arrows- on gear support.

  Fig 6: Locating Gear Support Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Install transmission bracket.

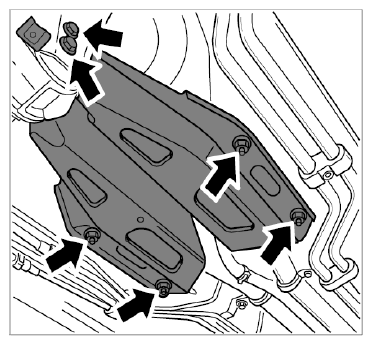

  Fit transmission bracket and secure it by screwing in and tightening the screws -arrows- .

  → Tightening torque: 65 Nm (48 ft. lb.)

  → Tightening torque: 65 Nm (48 ft. lb.)

  Fig 7: Locating Transmission Bracket Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Remove transmission jack.
