Installing Sealing Ring For Left Halfshaft Flange

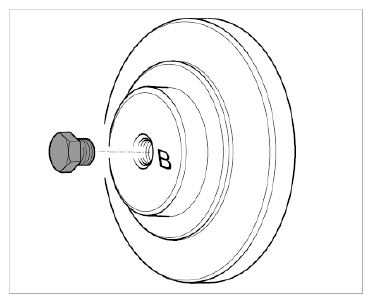

Screw M10 x 30 hexagon-head bolt into side B of Pressure Piece 9734 .

Fig 1: Identifying Hexagon-Head Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

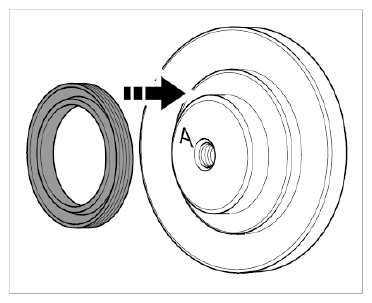

Thinly coat sealing lip and outer circumference of sealing ring with Vaseline and place the sealing ring on side A of Pressure Piece 9734 .

Fig 2: Installing Sealing Ring On Special Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

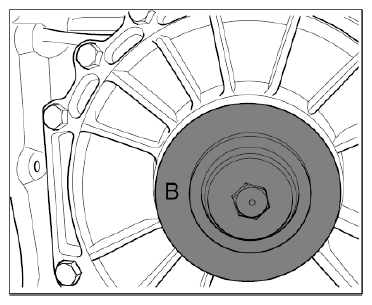

Hammer the sealing ring along with Pressure Piece 9734 completely into the transmission cover by hitting the hexagon-head bolt.

Fig 3: Identifying Pressure Piece Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
