Installing servo motor for emergency release

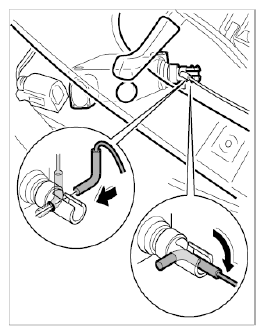

Engage the cable retaining pin at the servo motor and clip it in.

Fig 1: Engaging Cable On Assembly Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

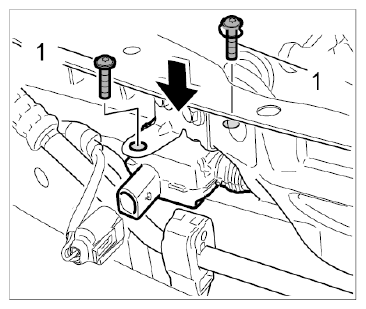

Position servo motor and secure with the fastening screws. → Tightening torque: 9.7 Nm (7.2 ftlb.)

Fig 2: Screwing Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

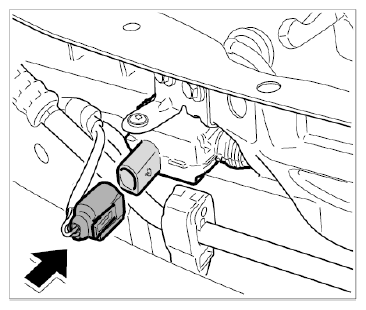

Push electric plug onto the servo motor until it is felt to engage.

Fig 3: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
