Removing switching element for filler flap

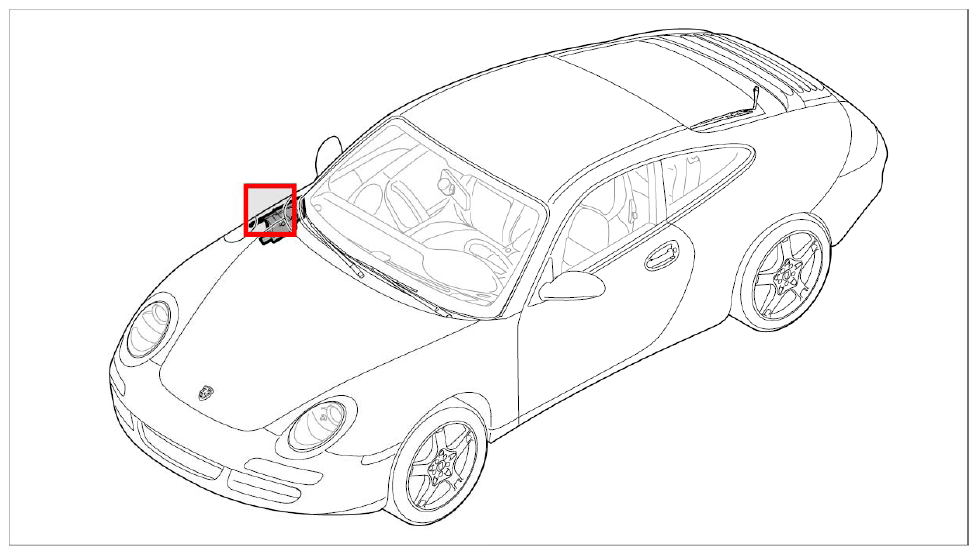

Fig 1: Overview Of Filler Flap Switching Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release -arrow a-  and pull off connector.
   Fig 2: Disconnecting Connector For Switching Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen the two fastening screws -1-  and remove the filler flap switching element from the holder.

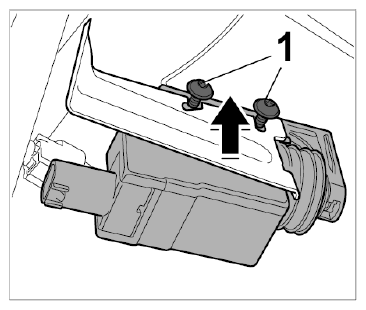

   Fig 3: Identifying Filler Flap Switching Element From Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disengage switching element for filler flap from the emergency operation cable.
   Fig 4: Disengaging Switching Element For Filler Flap From Emergency Operation Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
