Removing Cover For Underbody - Front Section

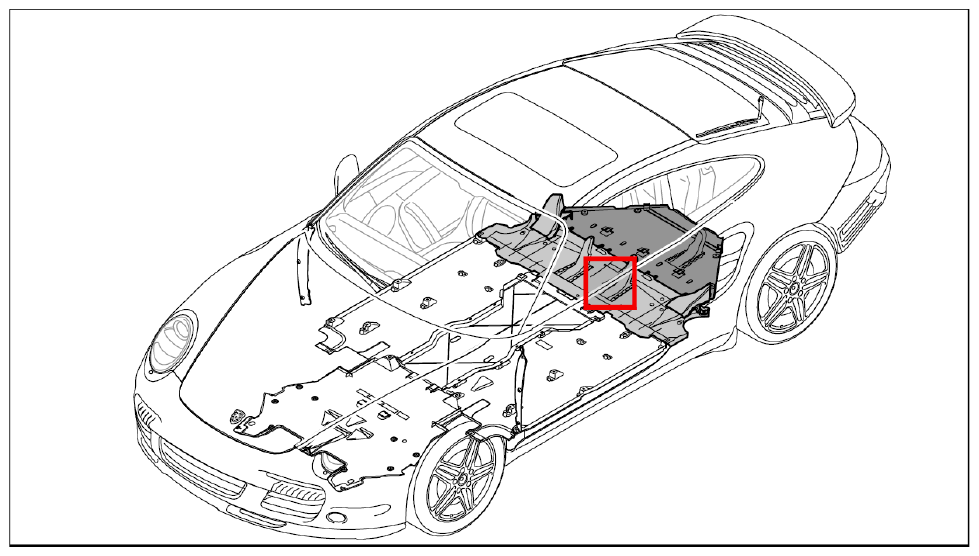

Fig 1: Overview Of Underbody Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2-  and fastening nuts -3-  .

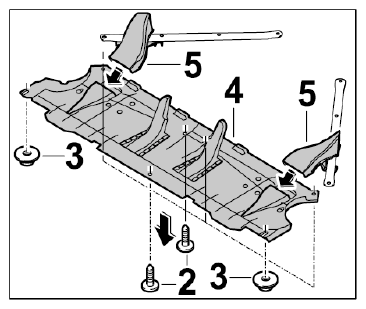

   Fig 2: Removing Rear Cover - Front Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull cover for underbody -4-  out of the two brake air ducts -5-  at the rear and remove it.
3. Unscrew fastening screw -2-  and remove brake air duct -5-  .

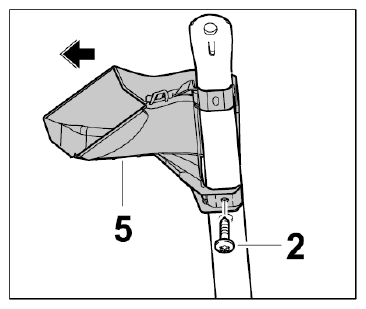

   Fig 3: Removing Brake Air Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
