Installing Cover For Rear Underbody - Rear Section

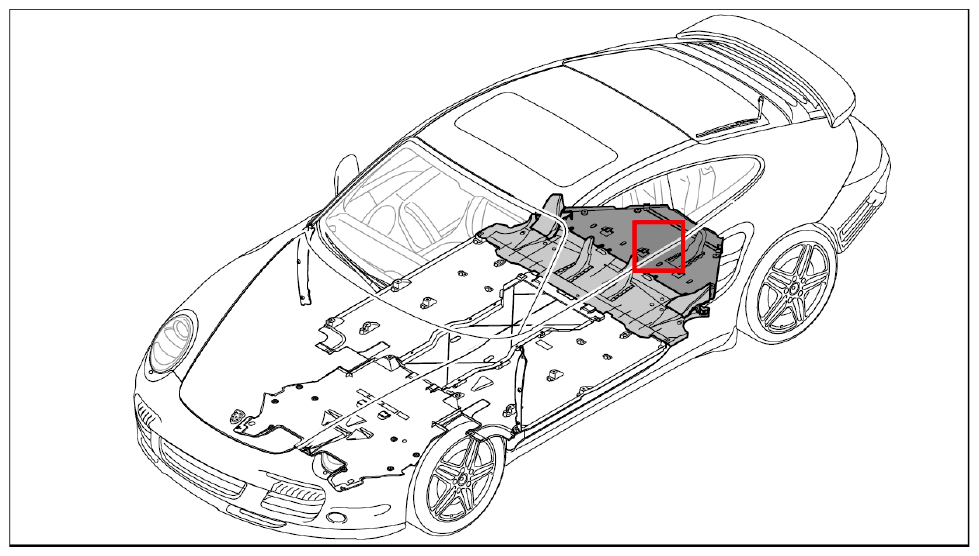

Fig 1: Overview Of Underbody Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for rear underbody -1-  .

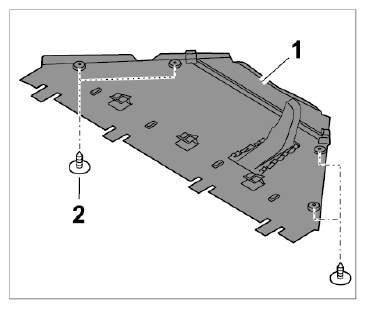

   Fig 2: Installing Rear Cover - Rear Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screws -2-  . → Tightening torque: 2 Nm (1.5 ft. lb.)
