Installing Cover For Rear Underbody - Front Section

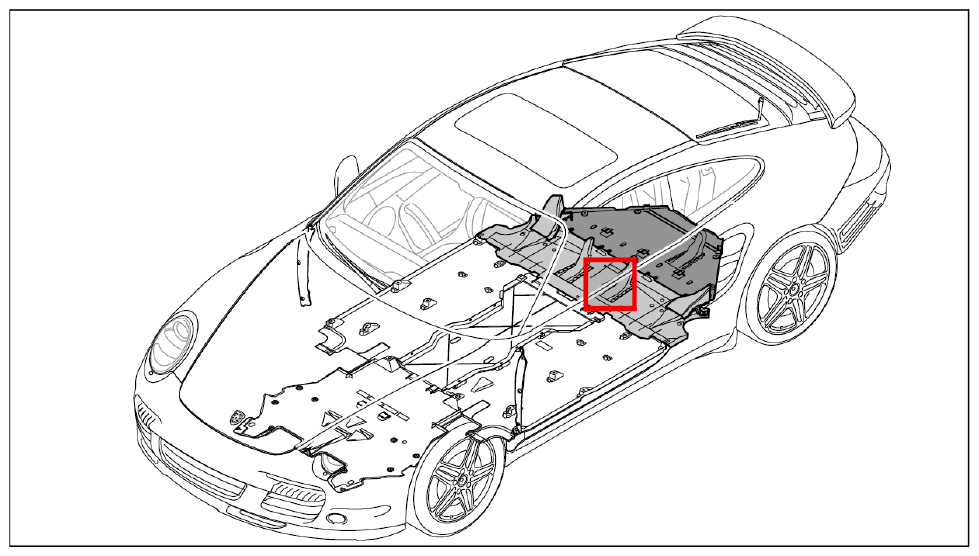

Fig 1: Cover For Rear Underbody Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Position brake air duct -5-  on the transverse strut and secure with the fastening screw -2-  . → Tightening torque: 2 Nm (1.5 ft. lb.)

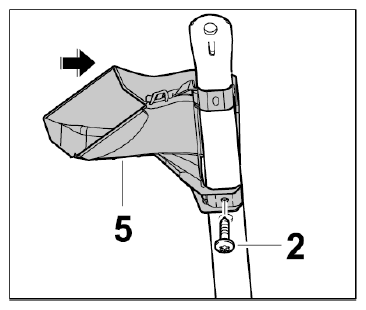

   Fig 2: Installing Brake Air Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert cover for underbody -4-  and engage it at the two brake air ducts -5-  at the rear.

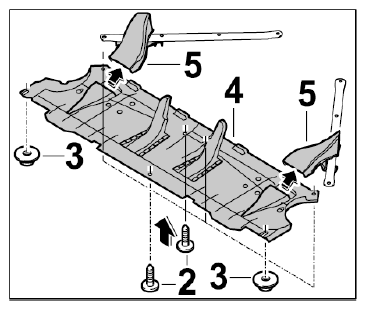

   Fig 3: Installing Rear Cover - Front Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Tighten fastening screws -2-  . → Tightening torque: 2 Nm (1.5 ft. lb.)

   Information

   Fastening nuts cannot be used again following removal.

4. Tighten fastening nuts -3-  . → Tightening torque: 2.5 Nm (2.0 ft. lb.)
