Removing Cover For center Underbody

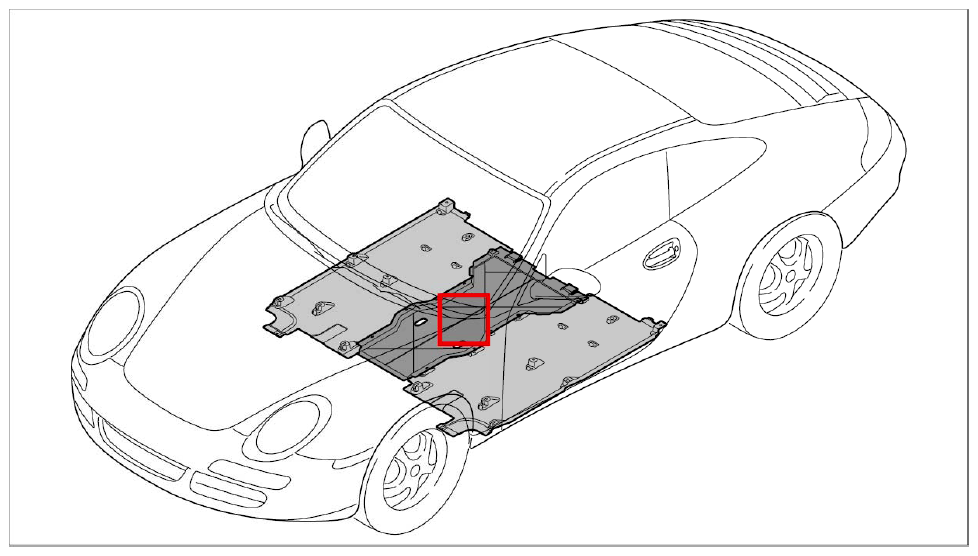

Fig 1: Overview Of center Underbody Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening nuts -3-  .
   Fig 2: Removing Middle Cover Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press covers for side underbody -1-  downward slightly and remove cover for center underbody -4-  from the overlaps.
