Installing Cover For Side Underbody

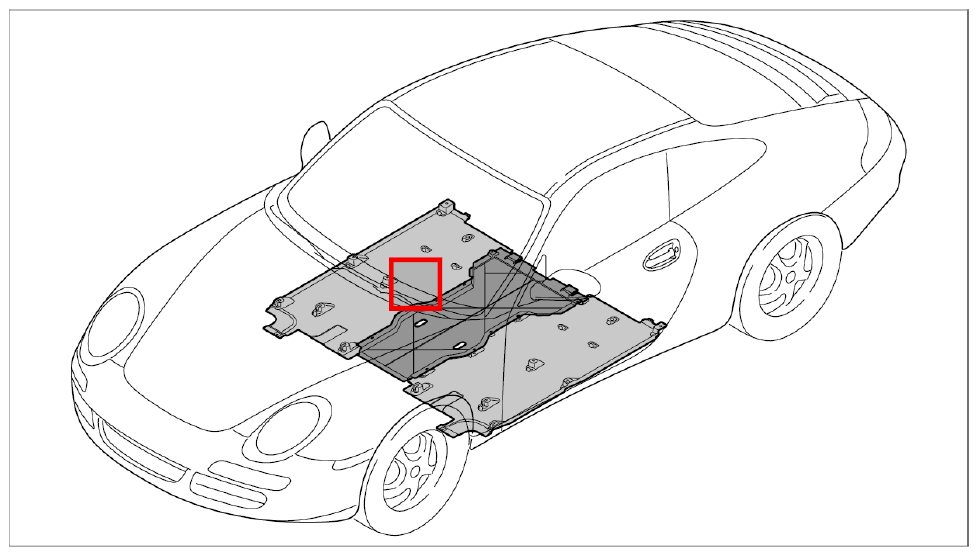

Fig 1: Overview Of Center Underbody Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for side underbody -1-  .
   Fig 2: Installing Side Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tightening fastening screw -2-  . Tightening torque → : 1.5 ft. lb.
3. Tightening fastening nuts -3-  . Tightening torque → : 1.5 ft. lb.
