Removing Seat Cross Member

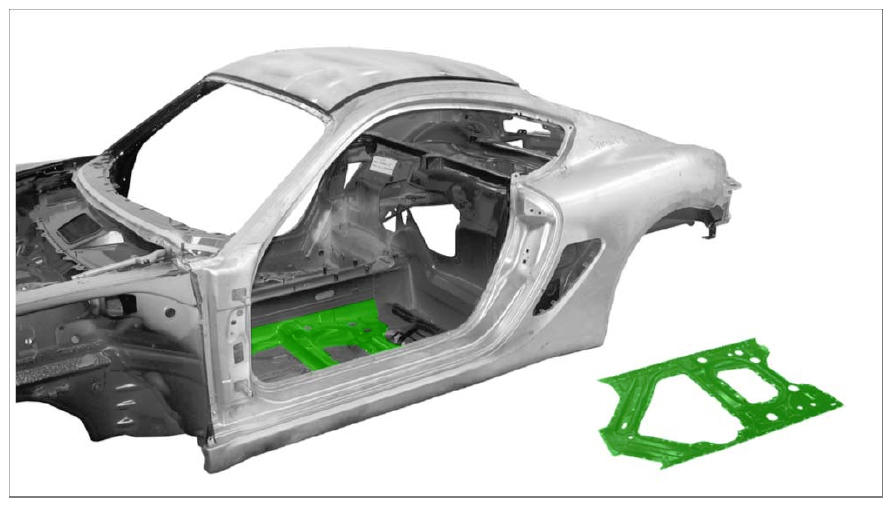

Fig 1: Seat Cross Member Component Location
G09823181Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mill off spotwelds
    1. 1.1. Mill off spotwelds in areas -A, B, C-  using a spotweld cutter.

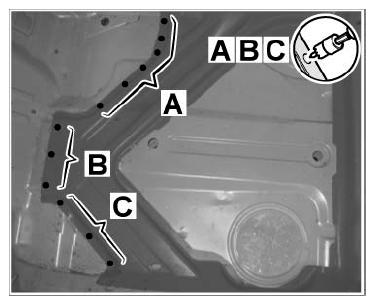

      Fig 2: Cutting Spotwelds
      G09823182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Mill off spotwelds
    1. 2.1. Mill off spotwelds in area -A-  and -B-  using a spotweld cutter.

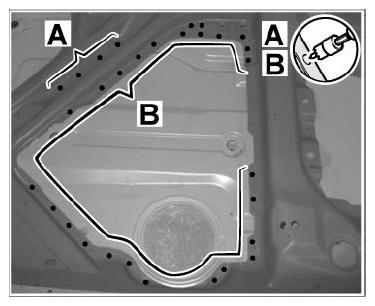

      Fig 3: Cutting Spotwelds
      G09823183Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Mill off spotwelds
    1. 3.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.

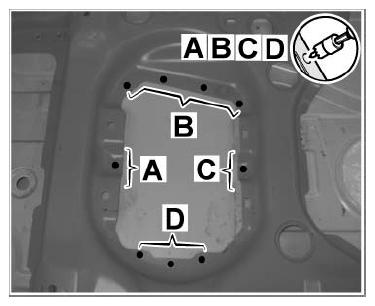

      Fig 4: Cutting Spotwelds
      G09823184Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Mill off spotwelds
    1. 4.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.

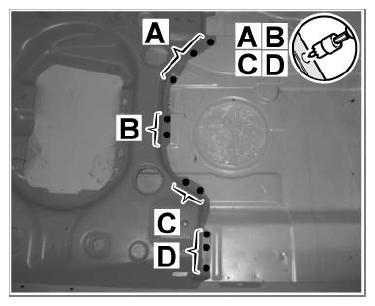

      Fig 5: Cutting Spotwelds
      G09823185Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Mill off spotwelds
    1. 5.1. Mill off spotwelds in area -A-  using a spotweld cutter.

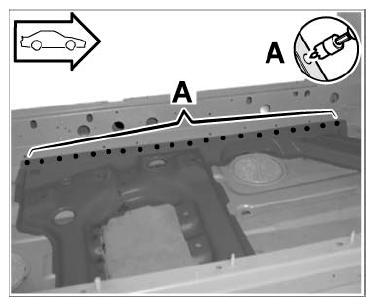

      Fig 6: Cutting Spotwelds
      G09823186Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Separate inert-gas welded seams
    1. 6.1. Separate inert-gas welded seams in area -A-  using a parting grinder.

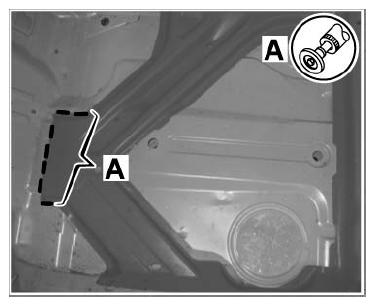

      Fig 7: Separating Inert-Gas Welded Seams
      G09823187Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Separate inert-gas welded seams
    1. 7.1. Separate inert-gas welded seams in area -A-  and -B-  using a parting grinder.

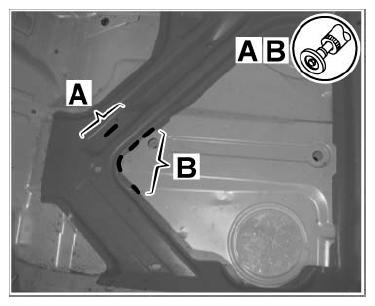

      Fig 8: Separating Inert-Gas Welded Seams
      G09823188Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Separate inert-gas welded seams
    1. 8.1. Separate inert-gas welded seams in area -A-  using a parting grinder.

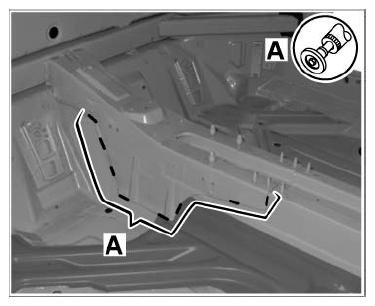

      Fig 9: Separating Inert-Gas Welded Seams
      G09823189Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Bend reinforcement of center tunnel in overlapping area slightly upward -arrow A-  .

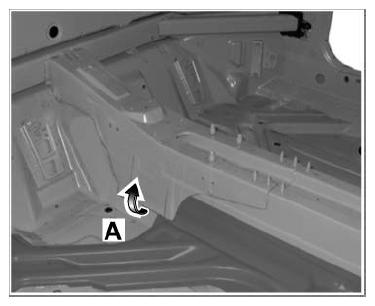

    Fig 10: Bending Reinforcement On center Tunnel
    G09823190Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Mill off and separate welded joints
    1. 10.1. Mill off spotwelds in area -A-  using a spotweld cutter (2 plate thicknesses).
    2. 10.2. Mill off spotwelds in area -C-  using a spotweld cutter.
    3. 10.3. Separate inert-gas welded seam in area -B-  using a parting grinder.

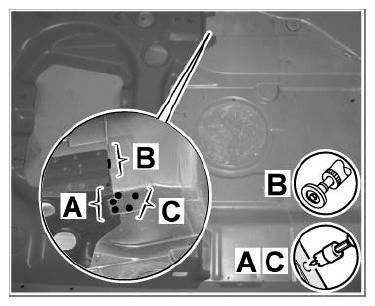

      Fig 11: Separating Welded Joints
      G09823191Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Bend reinforcement of center tunnel in overlapping area slightly upward -arrow A-  .

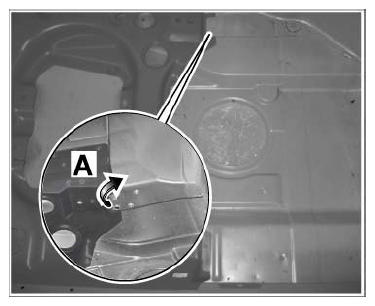

    Fig 12: Bending Reinforcement On center Tunnel
    G09823192Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Mill off spotwelds
    1. 12.1. Mill off spotwelds in area -A-  using a spotweld cutter.

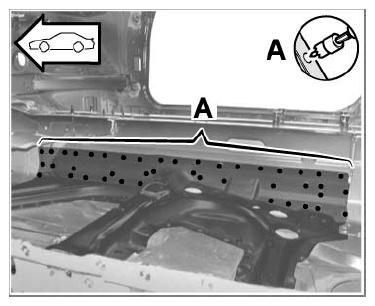

      Fig 13: Cutting Spotwelds
      G09823193Courtesy of PORSCHE CARS NORTH AMERICA, INC.
