Removing Deformation Element

→ The deformation elements must not be repaired.

→ Replace the deformation elements in the event of visible damage or pressure marks.

1. Release electric line slightly upwards.
2. Drill out blind rivets -1-  with a 4 mm drill and remove the deformation element -A-  .

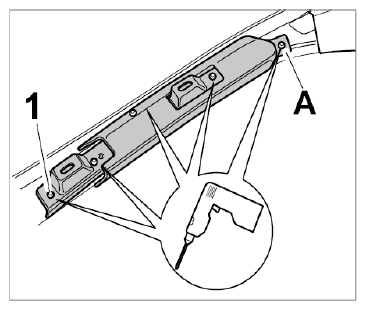

   Fig 1: Deformation Element Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
