Installing Deformation Element

→ The deformation elements must not be repaired.

→ Replace the deformation elements in the event of visible damage or pressure marks.

1. Position deformation element -A-  on inner cowl panel and rivet down using blind rivets -1-  .

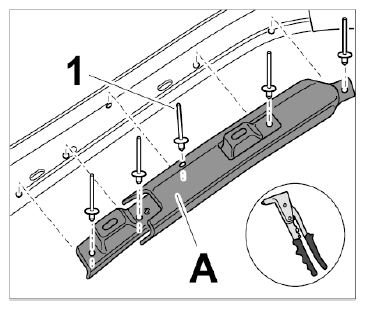

   Fig 1: Installing Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press in electric line on cowl panel frame.
