REMOVING LOWER SIDE MEMBER REINFORCEMENt

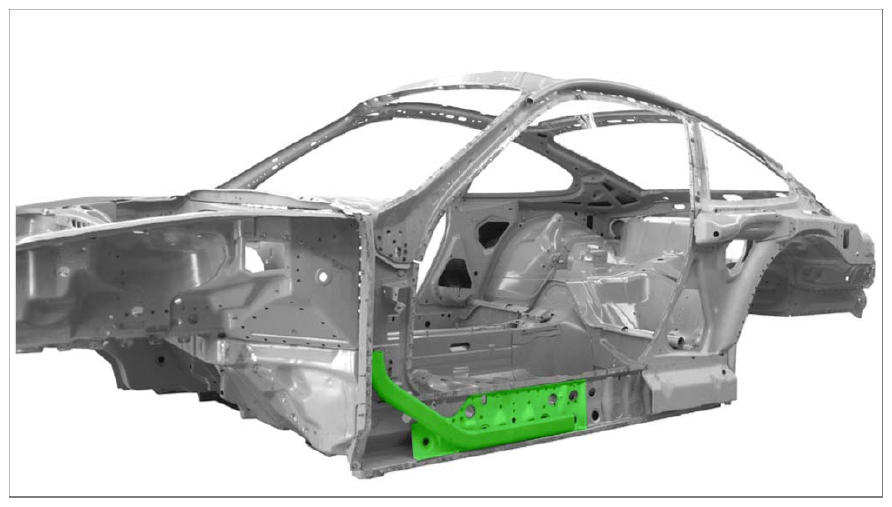

Fig 1: Lower Side Member Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove hinge pillar reinforcement. → 516255 REPLACING HINGE PILLAR REINFORCEMENT - section on "Removing"
Remove center side member. → 514855 REPLACING CENTRE SIDE MEMBER - section on "Removing"
Information

Only make the cut on the retaining bracket for the support tube in marked area A between the openings. The cut must never go through the openings.

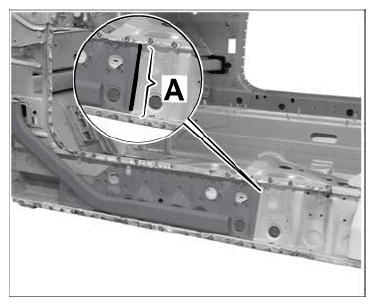

Determining the cut
1. 3.1. Determine the position of the cut -A- between the openings (holes). Mark the cut.

  Fig 2: Identifying Lower Side Member Reinforcement (Determining Cut)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

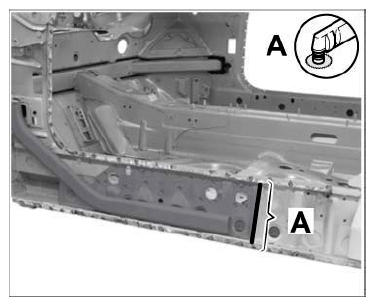

Cutting through retaining bracket for support tube
1. 4.1. Cut through retaining bracket for support tube in area -A- .

  Fig 3: Cutting Through Retaining Bracket For Support Tube
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

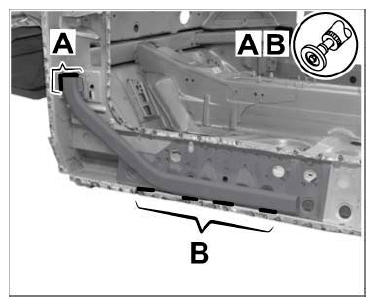

Separating inert-gas welded seams
1. 5.1. Separate inert-gas welded seams in areas -A- and -B - using a parting grinder.

  Fig 4: Separating Inert-Gas Welded Seams
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

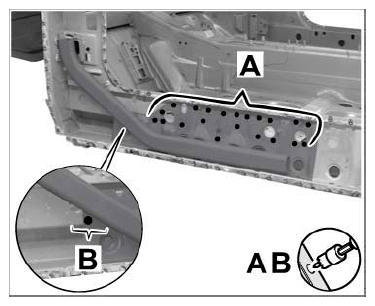

Cutting the spotwelds
1. 6.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

  Fig 5: Cutting Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

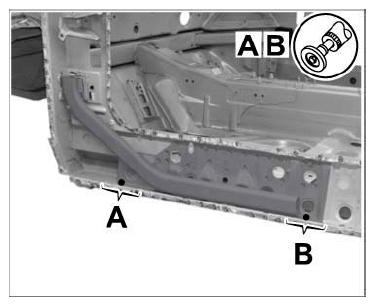

Separating spotwelds
1. 7.1. Separate spotwelds in areas -A- and -B- using a parting grinder.

  Fig 6: Separating Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
