Installing Seal For Rear Center Panel

  1. Position seal -3-  on rear center panel -4-  and press in plug-in mounts -1, 2-  .

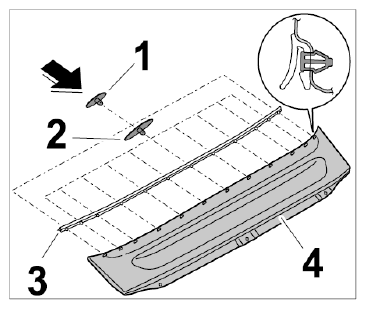

    Fig 1: Installing Seal For Rear Center Panel
    G09822928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
