Loosening Outer Rear Center Panel

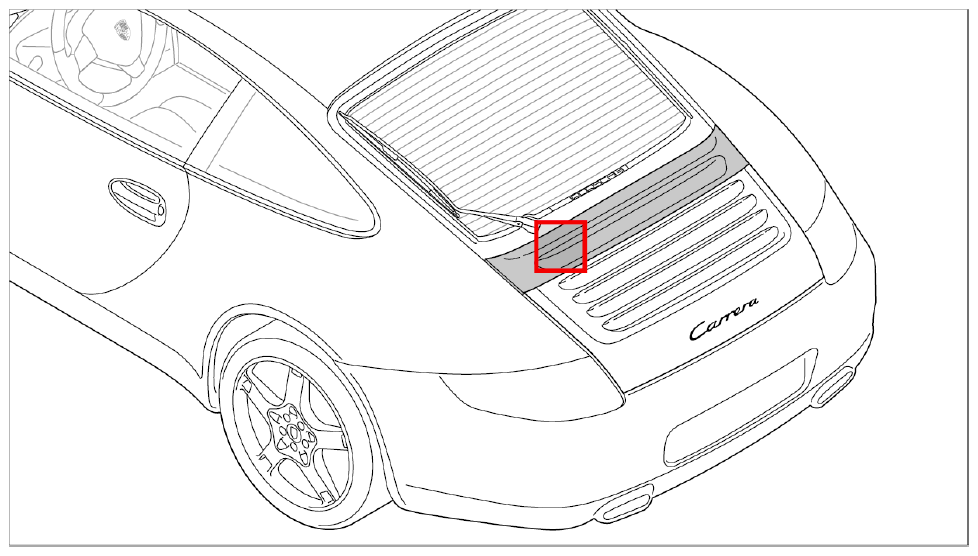

Fig 1: Outer Rear Center Panel Component Location
G09822920Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Extend rear spoiler manually.
  2. Unscrew fastening screws -1-  and remove rear center panel -2-  upwards until the electric plug connection can be released.

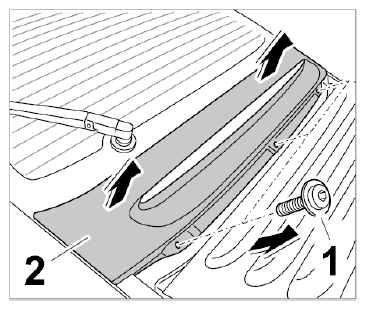

    Fig 2: Loosening Outer Rear Center Panel
    G09822921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
