Installing Rear Center Panel: Notes

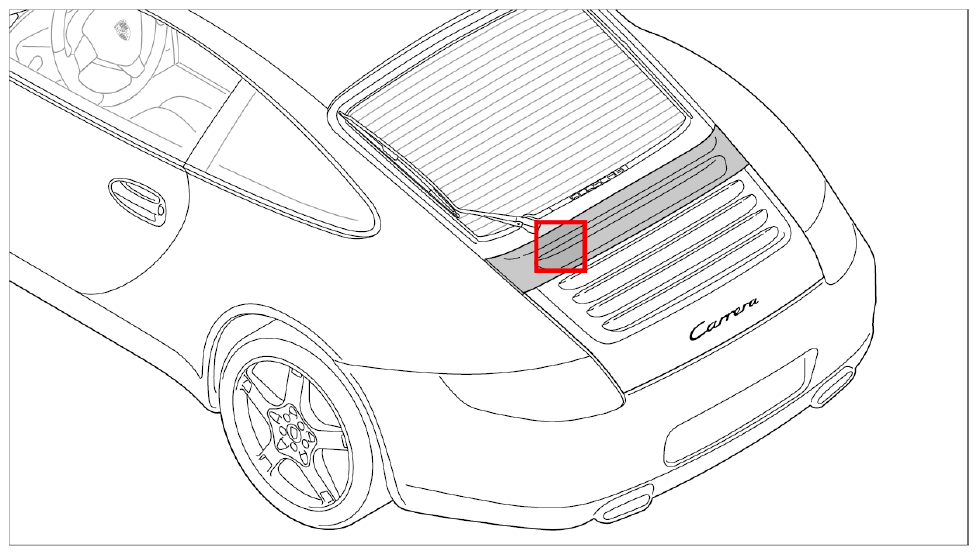

Fig 1: Identifying Rear Center Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe installation position of seal for rear center panel to rear window.

1. Position rear center panel -2-  .

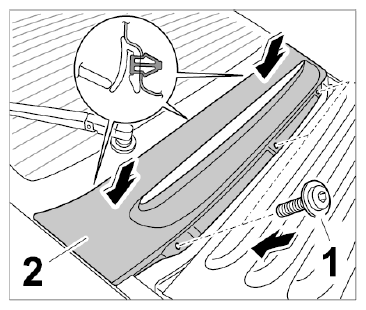

   Fig 2: Installing Rear Center Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. By shifting the contours in relation to the side panel and rear lid, adjust the gap dimensions as required and tighten with the fastening screws -1-  . Tightening torque → Tightening torque: 7.5 ft. lb.  → WM 5000IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
3. Retract rear spoiler.
