Fastening Inner Rear Center Panel

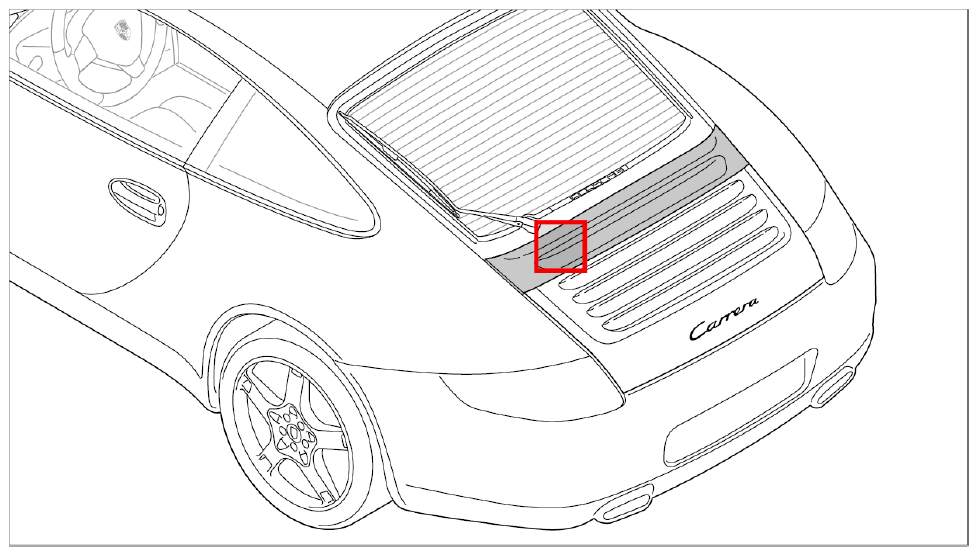

Fig 1: Identifying Rear Center Panel Installation Position
G09822924Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press in seal -2-  and tighten fastening nut -1-  . Tightening torque → Tightening torque: 7.5 ft. lb.

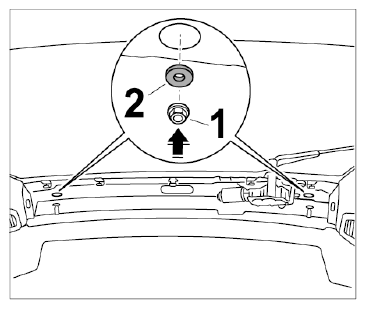

    Fig 2: Tightening Inner Rear Center Panel Fastening Nut
    G09822925Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Stick in sound absorbent film.

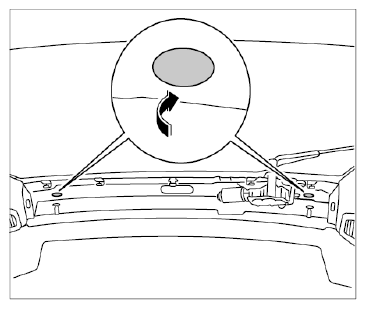

    Fig 3: Sticking Sound Absorbent Film
    G09822926Courtesy of PORSCHE CARS NORTH AMERICA, INC.
