Removing Roof

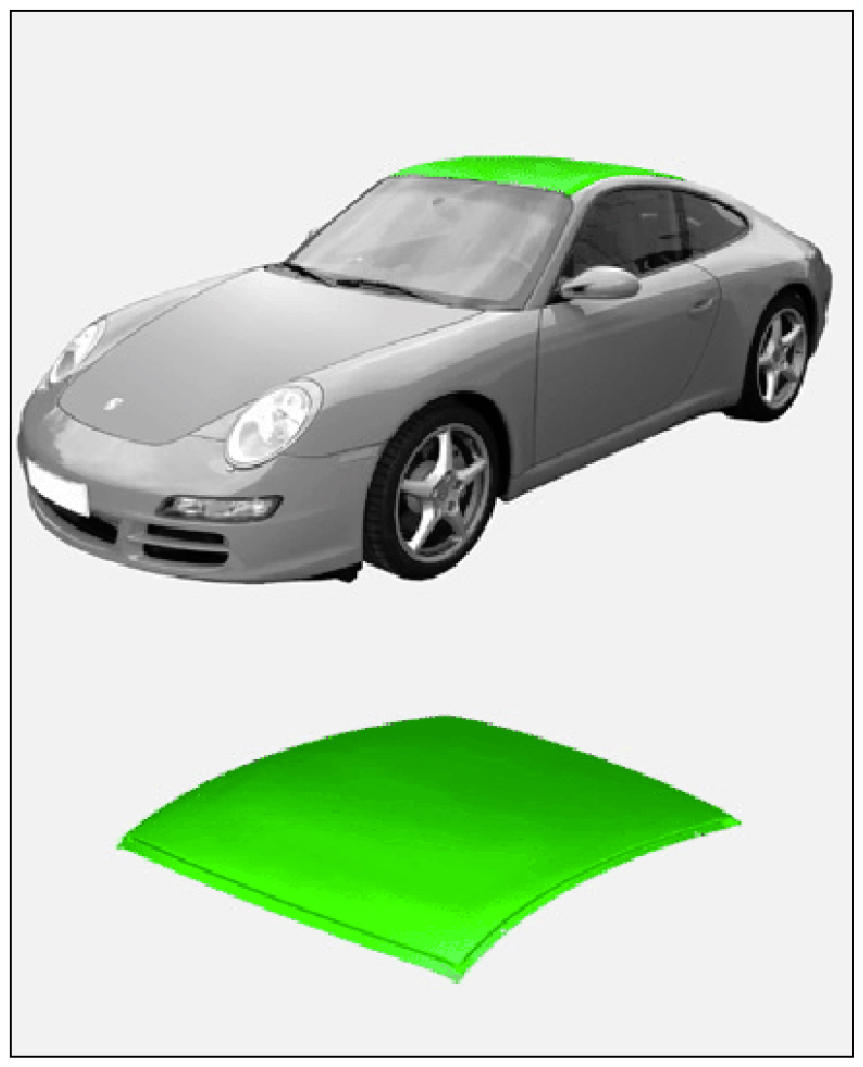

Fig 1: Roof Component Location
G09822795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mill off spotwelds.
    1. 1.1. Using a spotweld cutter, mill off spotwelds in areas A, B, C, D  .

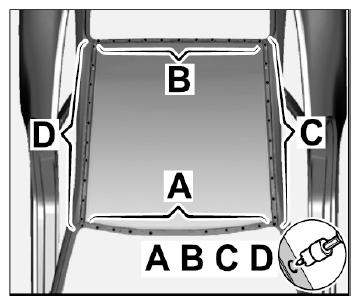

      Fig 2: Cutting Spotwelds
      G09822796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosening bonded joint
    1. 2.1. Heat up the bonded joint between the roof and the cowl panel frame or the rear roof frame with the hot-air gun. Insert a metal spatula between the bonded joint and separate it. Lift the roof upwards out of the body.

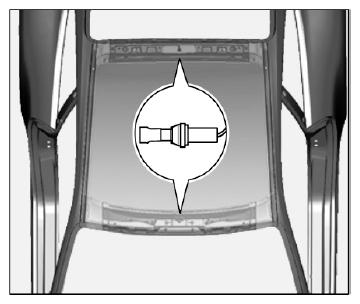

      Fig 3: Loosening Bonded Joint
      G09822797Courtesy of PORSCHE CARS NORTH AMERICA, INC.
