Affixing The Roof Sound Absorber

Information

The fastening points must remain accessible when positioning the sound absorbers (insulation).

1. Pull of the protective film and affix the roof sound absorber in the marked area.

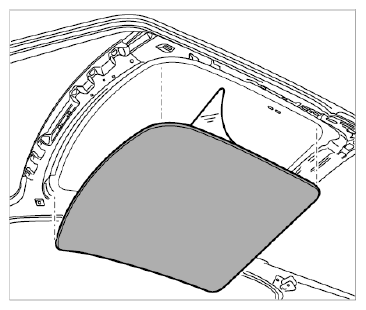

   Fig 1: Affixing Roof Sound Absorber

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
