Removing hydraulic unit

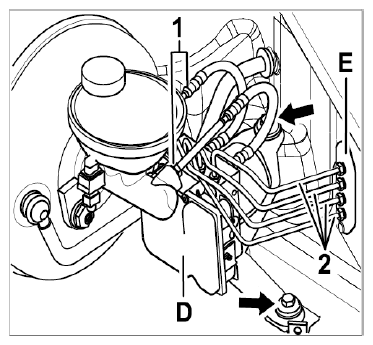

- Remove hydraulic unit -D-
.
- 1.1. Hold down brake pedal with pedal holder so that the brake fluid (in the reservoir) does not drain completely.
- 1.2. Loosen the brake lines -1-
on the brake master cylinder.
- 1.3. Loosen the brake lines -2-
from the hydraulic unit -D-
on the intermediate piece -E-
.
- 1.4. Close the brake lines and connections with suitable plugs.
- 1.5. Release control unit connector on the hydraulic unit and pull it off. Cover the plug connection and connector (to shield them from brake fluid or water).
- 1.6. Loosen support on hydraulic unit -Arrows-
(3-point mount).
- 1.7. Remove support/hydraulic unit assembly.
