WM 456019 Removing And Installing Steering-Angle Sensor For PSM: Removing

→ When removing and installing the steering column switch, turn the steering wheel so that the wheels are in straight-ahead position. This ensures that the airbag contact unit is locked in the central position.

→ Do not trap the cable of the airbag contact unit.

→ Check that the cable is routed correctly.

Information

If the airbag contact unit setting was changed accidentally, it must be adjusted. To position the airbag contact unit in the central position, press the locking element and turn the rotor carefully to the left as far as it will go. Then turn the rotor carefully to the right, approx. 3.5 to 3.75 revolutions, until the lock engages. The arrow marking on the rotor must be positioned between the arrow markings on the contact unit.

1. Remove steering-column panels.

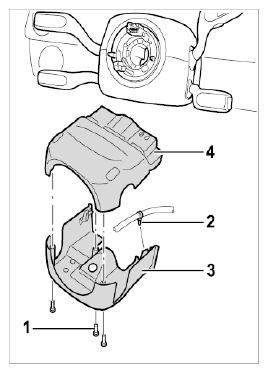

   1. 1.1. Remove lower steering-column panel -3-  .

      Unscrew screws -1-  and unclip cable clamp -2-  .

      Move steering-wheel adjustment lever to a vertical position and remove lower steering-column panel -3-  .

      Fig 1: Identifying Steering-Column Panels

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

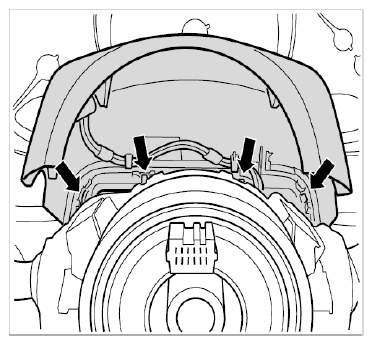

   2. 1.2. Remove upper steering-column panel -4-  .

      Unclip upper steering-column panel -4-  , see -arrows-  , and disconnect electric plug connection.

      Fig 2: Locating Steering-Column Switch

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

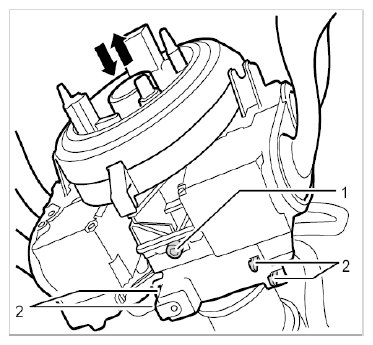

2. Remove steering-column switch.

   Unscrew screw -1-  , unclip cable guide -2-  , pull out electric plug connections and remove steering-column switch.

   Fig 3: Removing Steering-Column Switch, Bottom

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove airbag contact unit (spring) from steering-column switch.

   Information

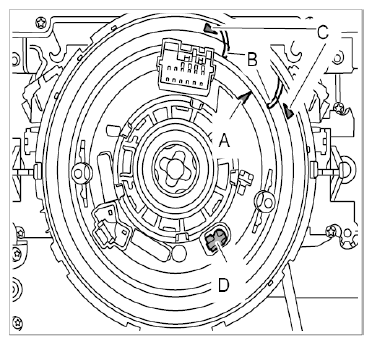

   Ensure that arrow -A-  on the rotor is positioned between the markings -B-  of the arrows -C-  on the airbag contact unit and that the locking element -D-  is engaged.

   Fig 4: Identifying Airbag Contact Unit Marking

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

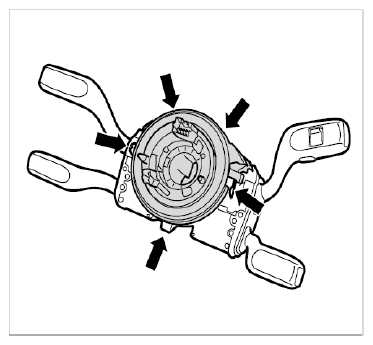

   Unclip airbag contact unit (spring) -arrows-  and carefully remove it.

   Fig 5: Locating Airbag Contact Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
