WM 456019 Removing And Installing Steering-Angle Sensor For PSM: Installing

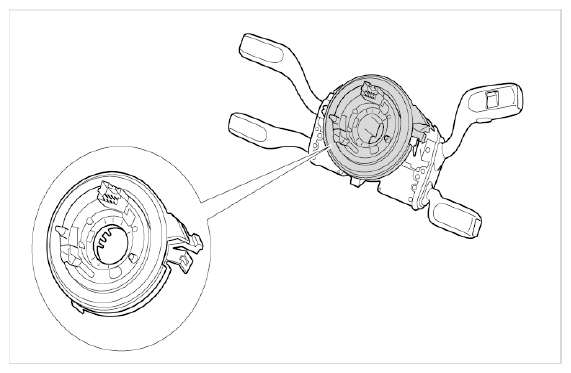

Fig 1: Identifying Steering-Angle Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install in reverse order.
2. Install steering-column switch.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Steering-column switch to holder		Tightening torque	+5 Nm (+3.5 ftlb.)
