Removing rotation-rate sensor

  1. Move the left seat back and adjust the steering wheel upwards.
  2. Remove left cover on the centre console.

    Unscrew screw -2-  and take off cover -1-  .

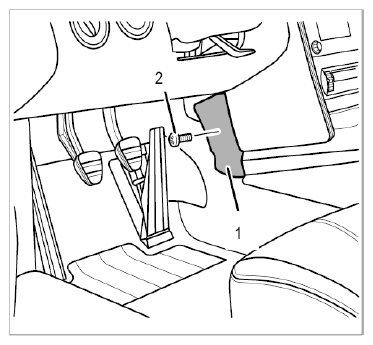

    Fig 1: Identifying Cover In Left Footwell
    G09825984Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove rotation-rate sensor.

    Unscrew screws -1-  (the screws -1-  can only be accessed using a 1/4- inch tool). Pull off plug connection and take out rotation-rate sensor.

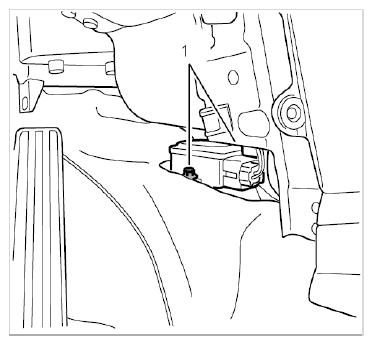

    Fig 2: Identifying Rotation-Rate Sensor
    G09825985Courtesy of PORSCHE CARS NORTH AMERICA, INC.
