Installing rear speed sensor

Information

• The speed sensors on the front and rear axles are identical.
• The bore for mounting the speed sensor must be perfectly clean and should be greased with Molykote Longterm 2 plus.

1. Place speed sensor in installation position. Tighten the fastening screw -2-  to 10 Nm (7.5 ftlb.).

   Join connector on the speed sensor to the combination plug connection -1-  . Lock combination plug connection -1-  .

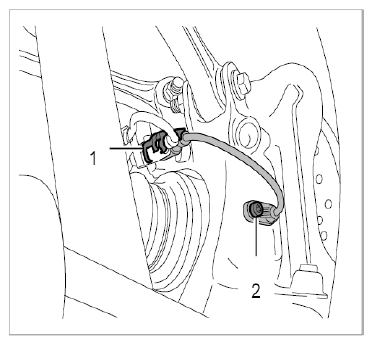

   Fig 1: Identifying Plug Connection And Connector For Rear Speed Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lower the vehicle.
