Removing Front Door Window

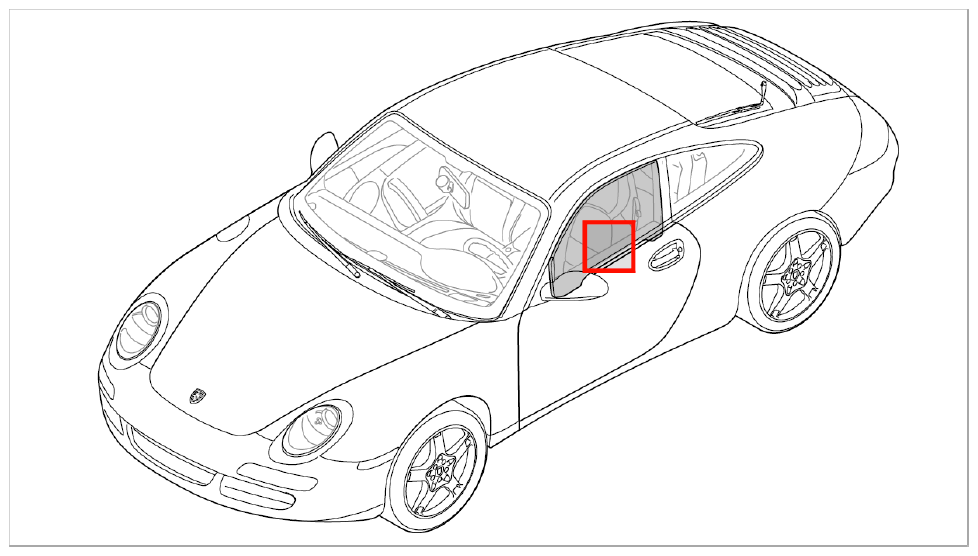

Fig 1: Identifying Position Of Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove plastic lid. Fastening screws are then accessible.

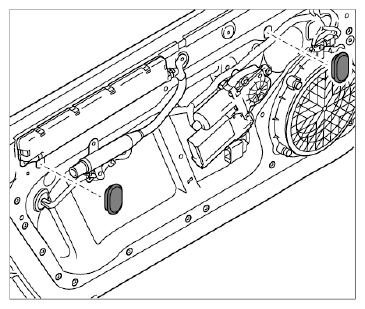

Fig 2: Identifying Plastic Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screw -1- of the clamping jaws at the front and rear by 2 turns.

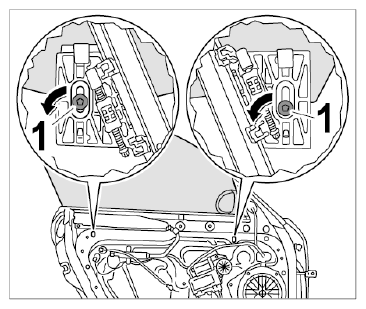

Fig 3: Detaching Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull front door window -1- upwards out of the door channel -arrow- .

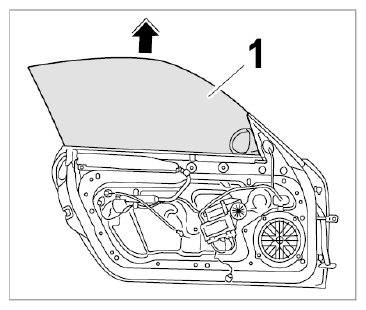

Fig 4: Removing Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
